Battery Backup System

Click on thumbnail or image to enlarge.   Use Back button or BackSpace key to return here.

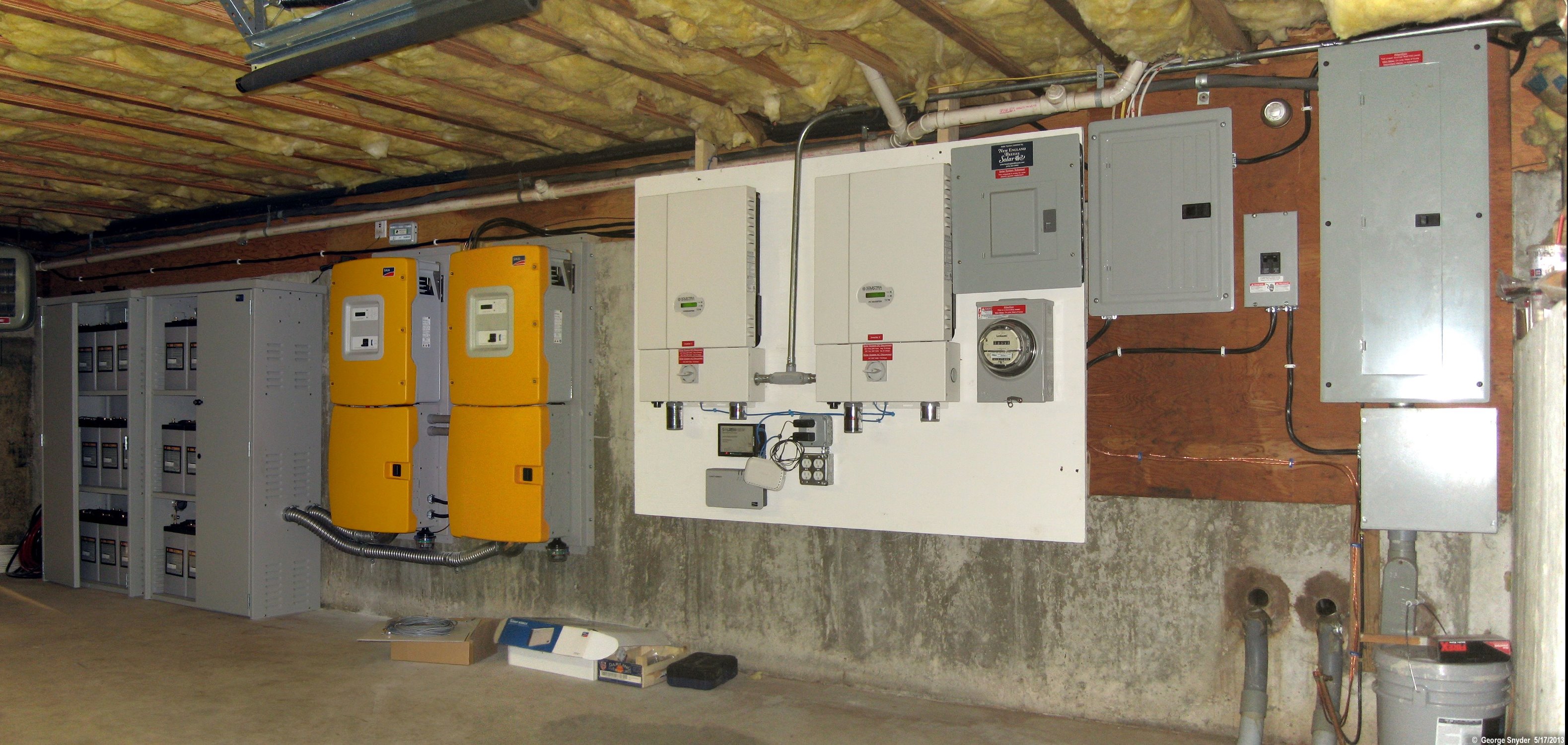

Backup System Under Construction.
5/7/2013 6:53:30 PM

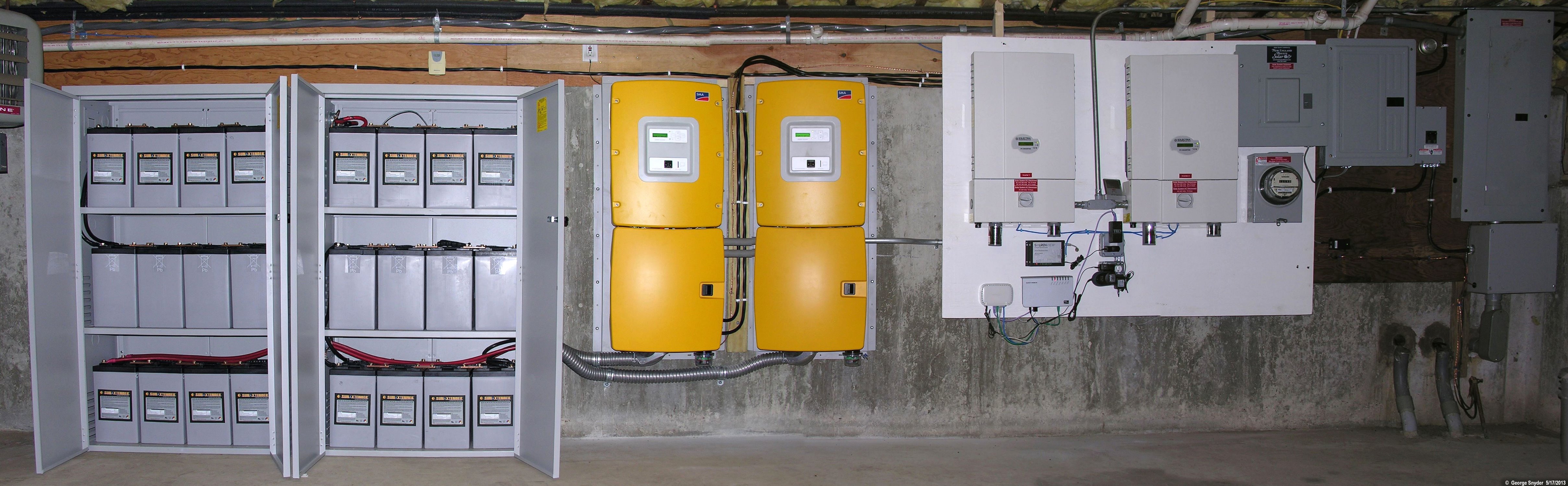

130516-183556-DSCN8264P,65,66P PM1 P B.jpg
Solar + Battery Backup System.
5/16/2013 6:36:39 PM
130516-183638-DSCN8267P,65,66P PM1 P B.jpg
Solar + Battery Backup System.
5/16/2013 6:36:39 PM

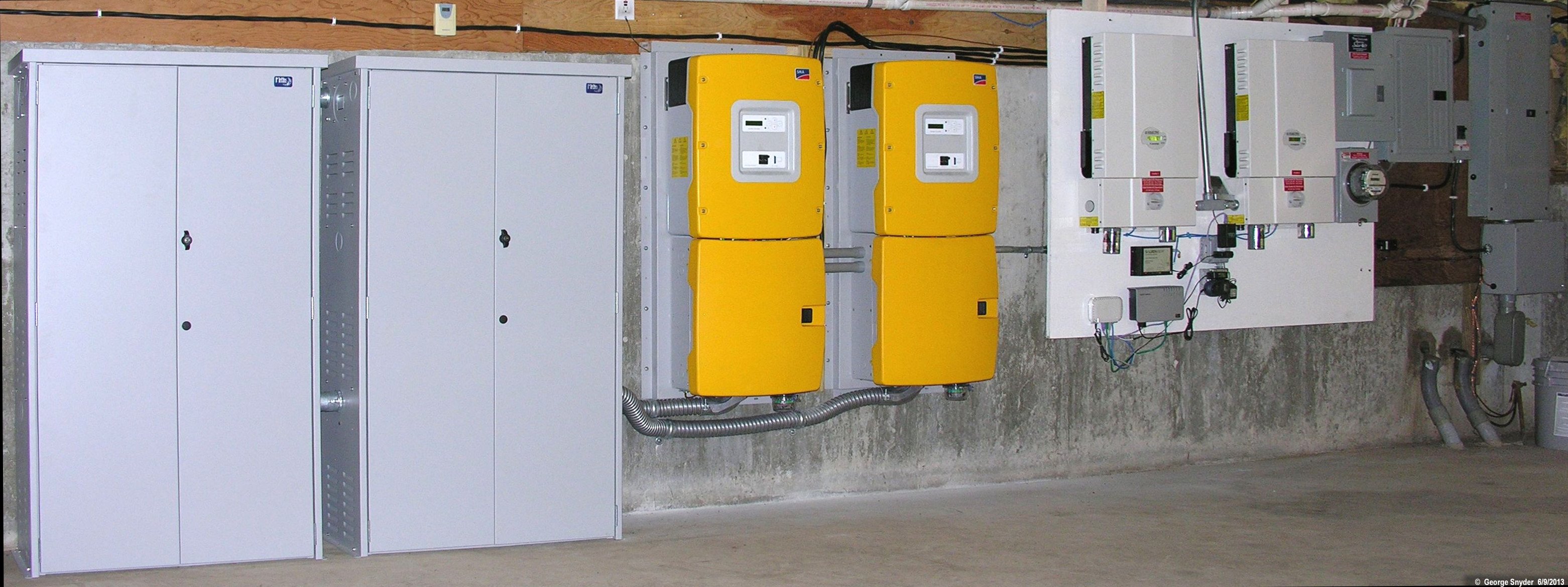

130517-174822-DSCN8298 PBR.jpg
Solar + Battery Backup System.
5/17/2013 5:48:23 PM

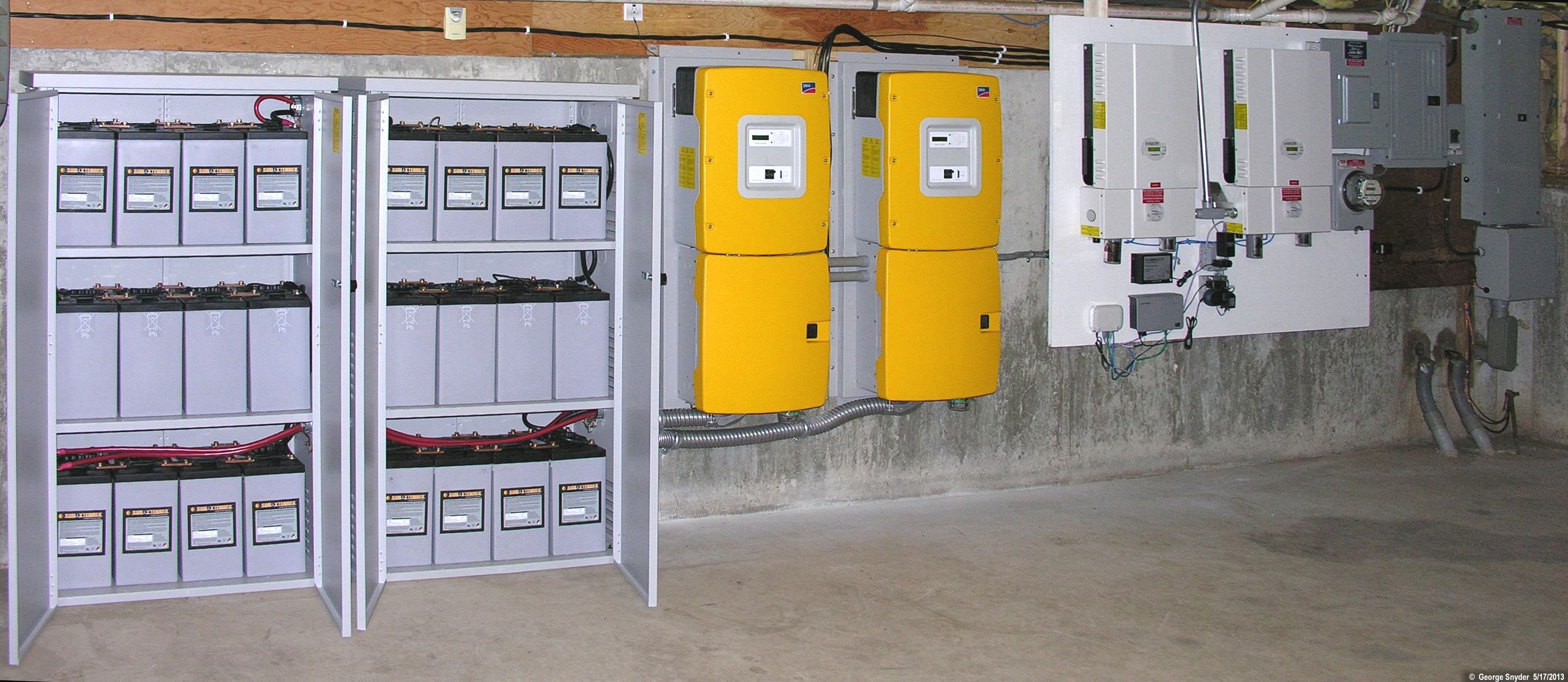

130517-182644-DSCN8316 PSB2.jpg
Solar + Battery Backup System.
5/17/2013 6:26:44 PM

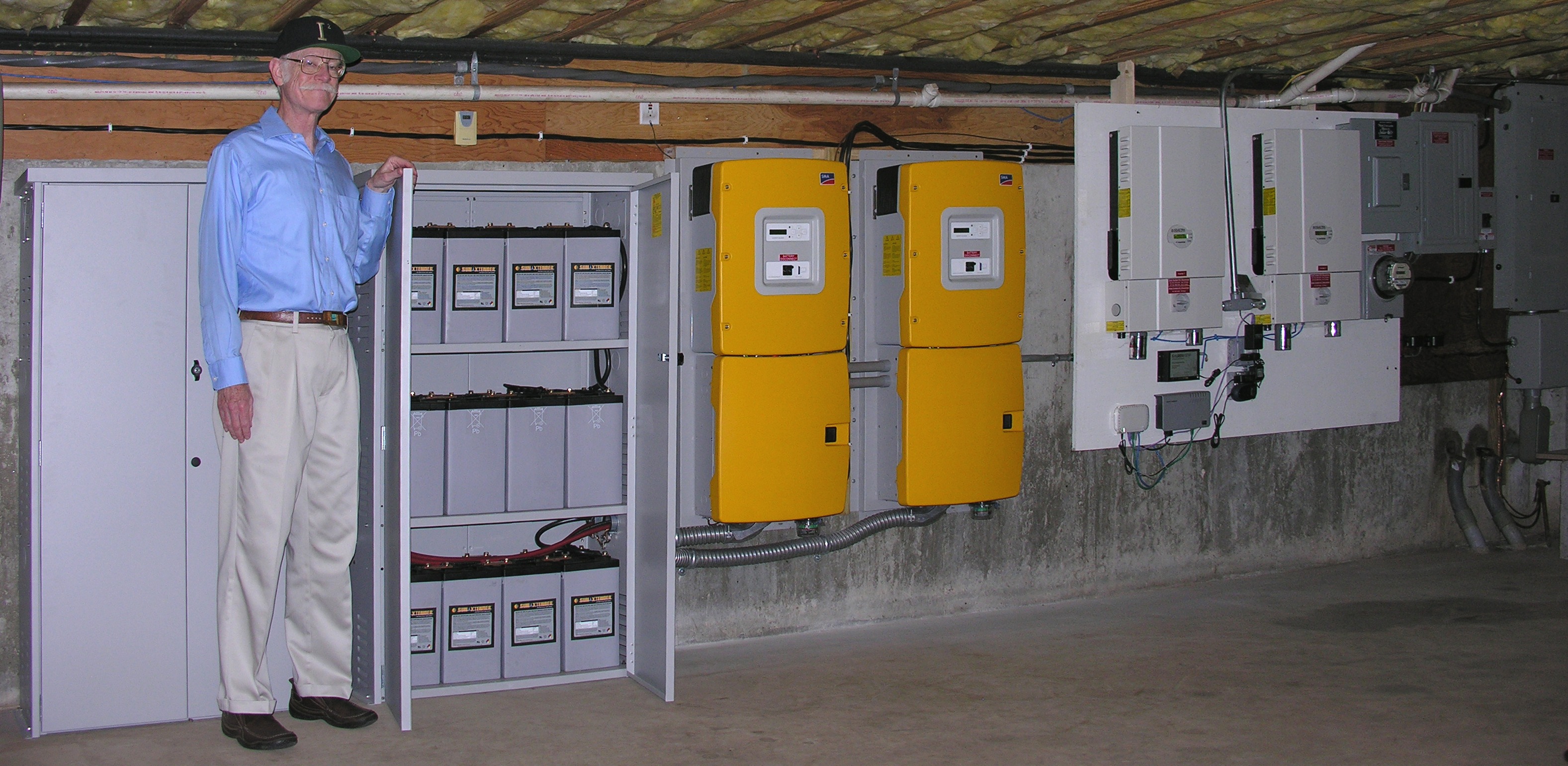

130814-170816-DSCN8903 PRBC.jpg
George Snyder Battery Backup System
8/14/2013 6:49:36 PM
2013-06-06 1232 RARL2.png

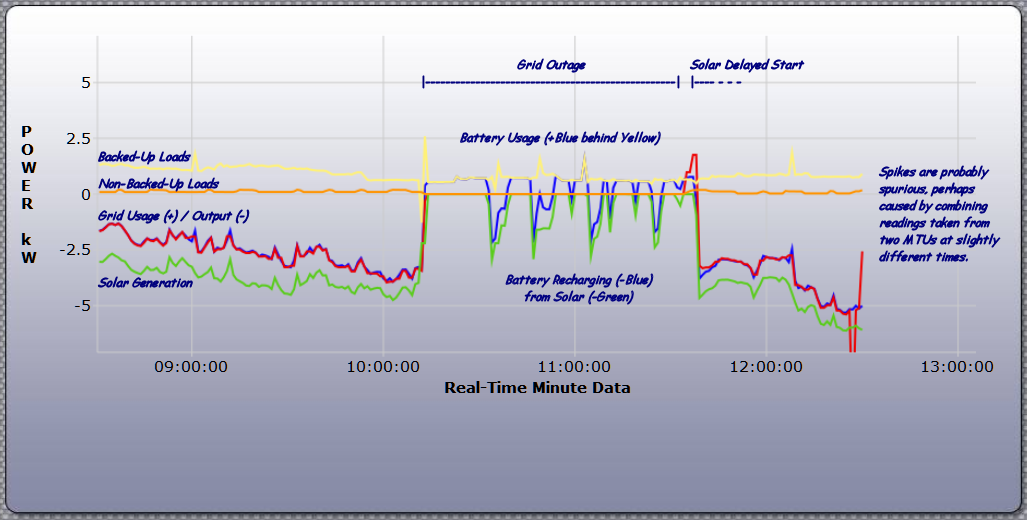

TED Power Outage Graph
6/7/2013 5:04:38 PM
Solar + Battery System - Connections.png

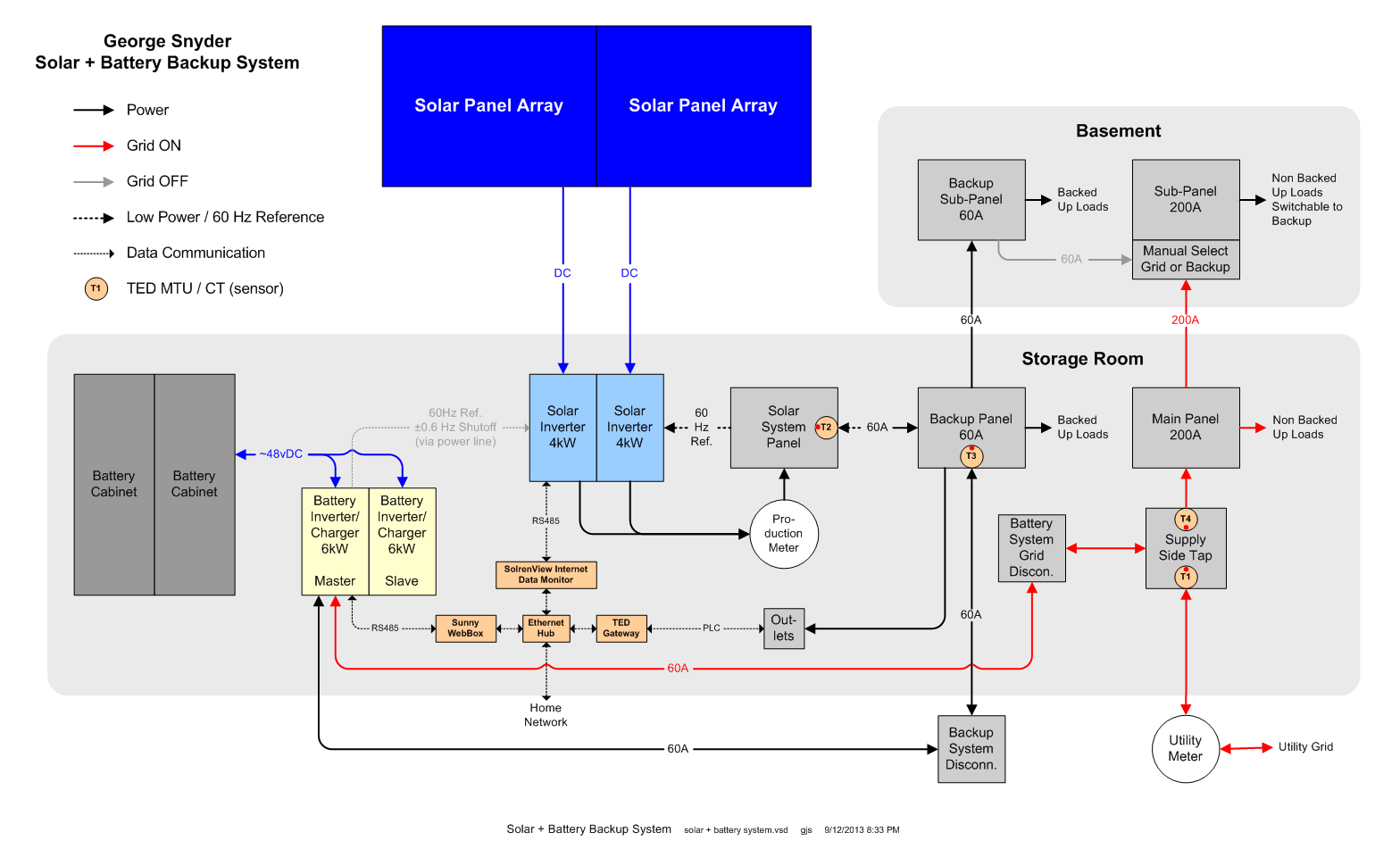

System Diagram.
9/12/2013 8:30:02 PM
Solar + Battery System - Grid OFF.png
Grid OFF.
9/12/2013 8:34:09 PM
Solar + Battery System - Grid ON.png
Grid ON.
9/12/2013 8:33:32 PM
Solar + Battery System - TED CT Layout.png

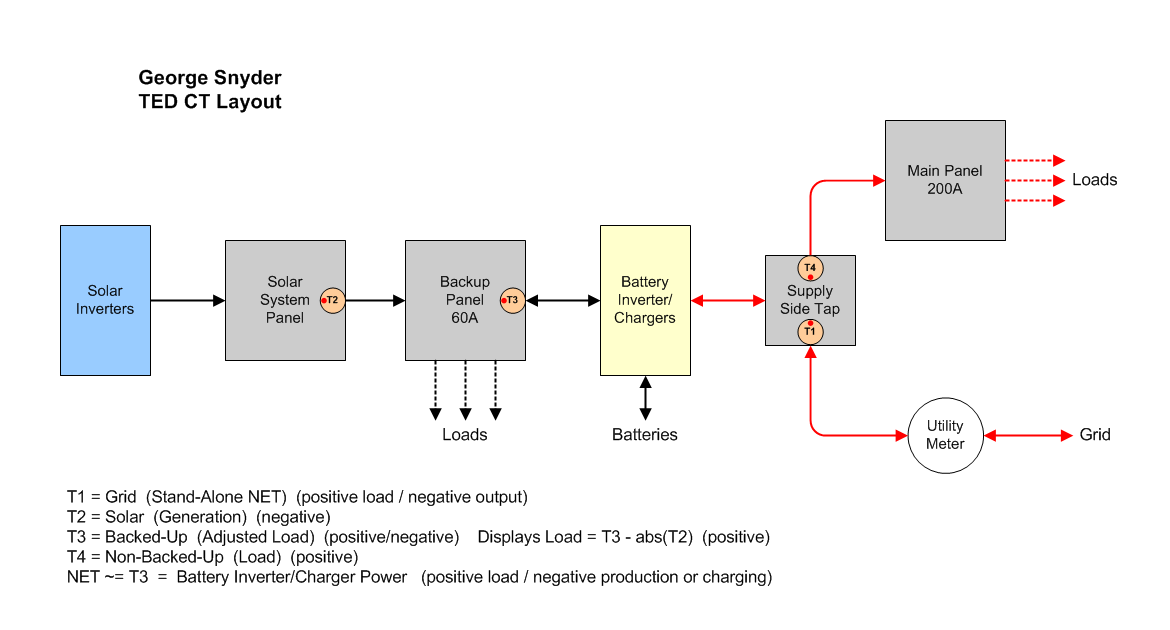

TED CT Layout
6/8/2013 5:45:09 PM
